BA-FRI-HS
|
|
|
10” x 10” BA-FRI is our fire-rated insulated access door recommended for installation in fire-rated walls and ceilings with a full two inches of thick mineral wool. It is quick and easy to install and features a one-inch flange that is ideal for easy installation on any surface.
If the project code requires a fire-rated access door for your commercial building, BA-FRI is the right choice!
Why Choose 10” x 10” BA-FRI?
Compliance: BA-FRI is one of our most-trusted fire-rated fire-safety standard-compliant access panels that add fire-safety features to your building. In cases of a fire outbreak, the BA-FRI protects your gas lines, electrical wiring, plumbing, heating, ventilation, and air conditioning by helping contain the fire for a specific period.
Installation: It provides quick and easy installation on fire-rated walls and ceilings for hassle-free maintenance.
Durability: Its solid steel construction adds sturdiness and durability to the access doors to protect building components safely and securely. The access door's 16-gauge cold rolled steel frame, and a 20-gauge galvannealed steel door with 2 inches of mineral wool for insulation make it sturdier than other access doors and panels.

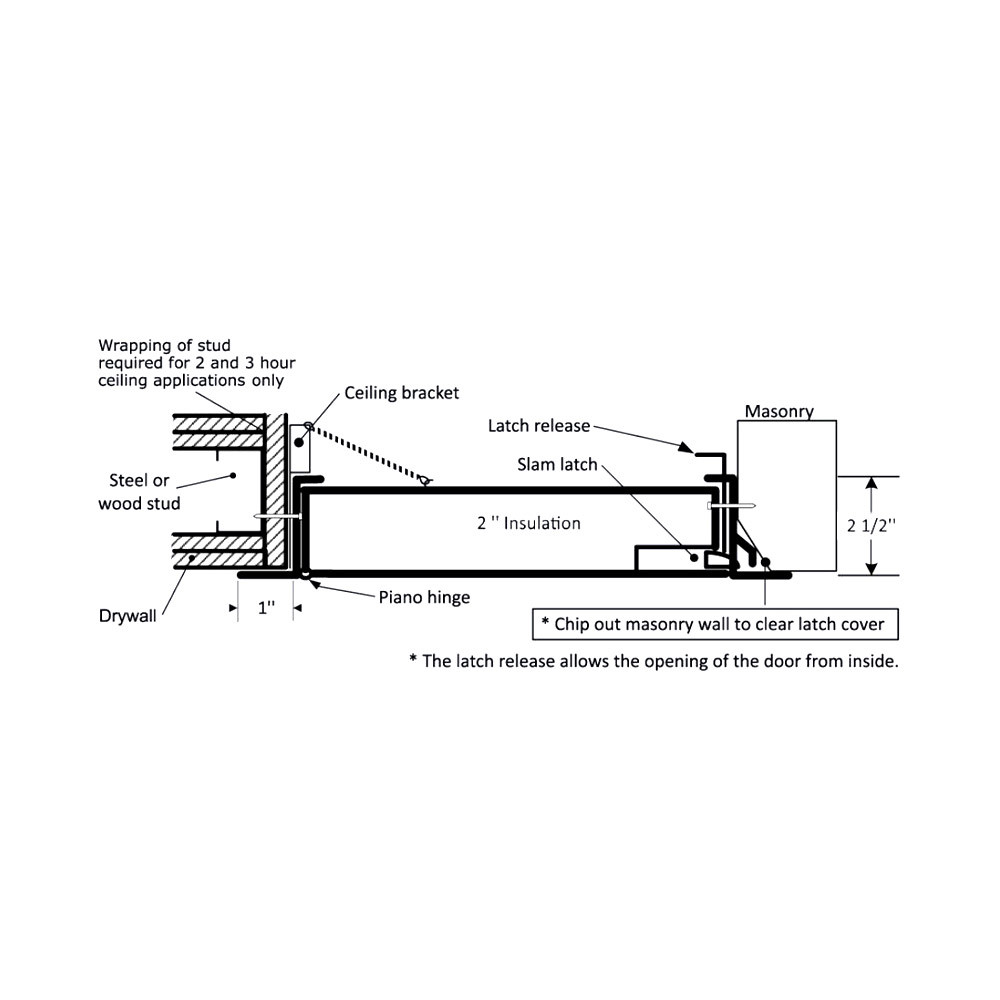

Security: It has a slam latch, continuous piano hinge, inside panel release, and a DuPont high-quality white powder coat finish that you can paint to blend with your wall and interior design. Moreover, the BA-FRI fire-rated access panel has a one-inch flange for a quick flush installation on any surface. It is excellent for industrial, commercial, or residential projects.
Fire-rated access doors for vertical use are subject to the following:
Vertical wall assemblies: Fire-rated access doors for vertical use are subject to the following:
Certification: UL 10B (2009), NFPA 252 (2012), CAN/ULC S104 (2010).
Rating Achieved: 3 hours, neutral/negative pressure
Maximum size: 48" x 48" (1219mm x 1219mm), the full area of 2304 in², tolerance on height and width limitation is 3" (76mm) if the size does not exceed 2304 in².
Temperature rise: 250°F (121°C) after 30 minutes and 450°F (232°C) after 60 minutes.
Fire-rated access doors for horizontal use are subject to the following:
Horizontal ceiling assemblies: Fire-rated access doors for horizontal use are subject to the following:
Certification: ASTM E119 (2012), CAN/ULC S101 (2007)
Rating Achieved: 3 hours in non-combustible construction and 1 hour in combustible construction
Maximum size: 24"X36" (610 mm X 914 mm) (hinges and latches on the side of 36"), tolerance on dimension limitations is 3" (76 mm) if the area does not exceed 864 in².
Temperature rise: Within allowable per ASTM E119 and CAN/ULC S101
LEED V4 Compliance
BA-FRI is LEED V4 compliant and will contribute directly to your project's ability to achieve LEED certification.
In Canada: LEED Canada-NC New Construction & Major Renovations LEED Canada-CI Commercial Interiors
In the USA: LEED-NC New Construction & Major Renovations LEED-CI Commercial Interiors
