BA-DSH-A
|
|

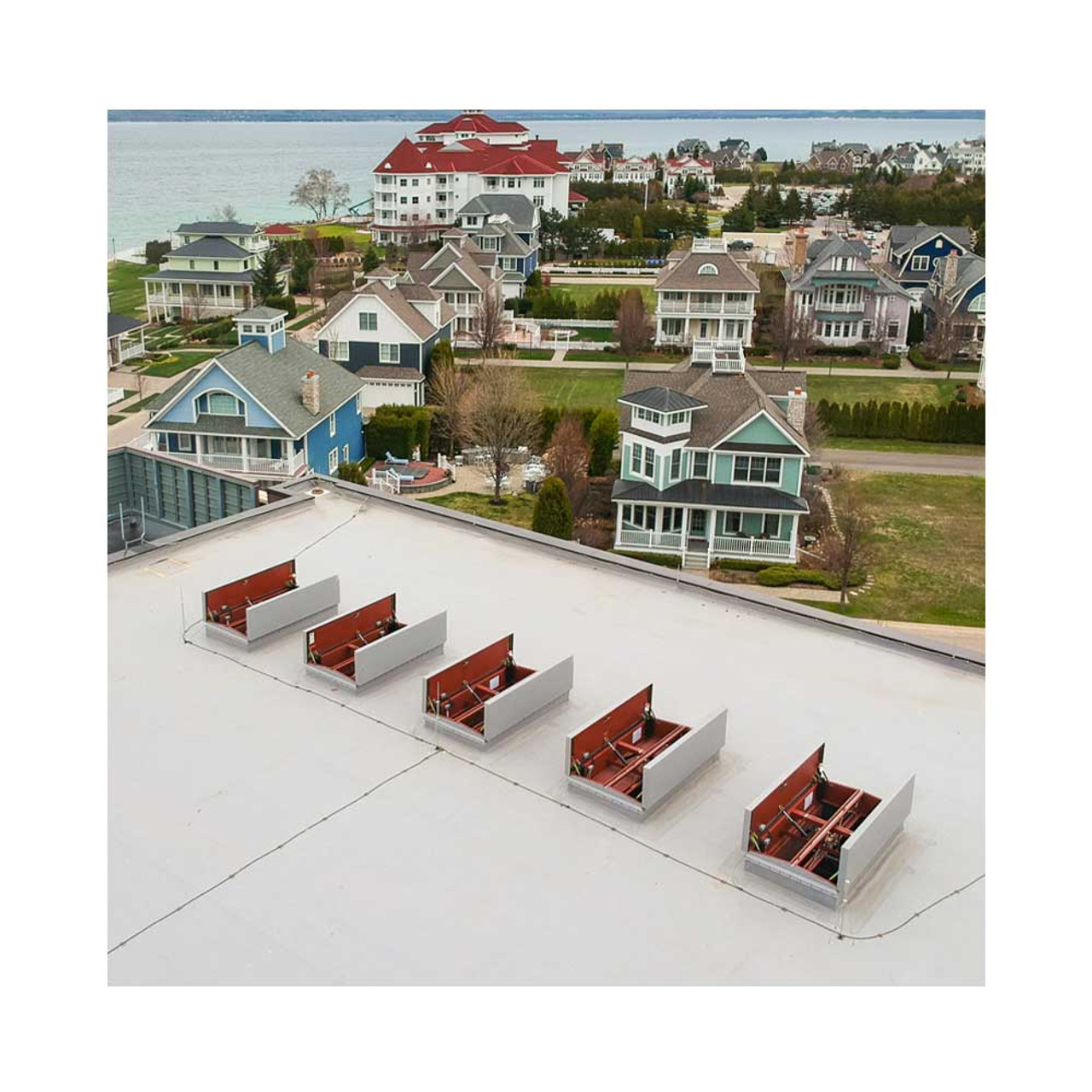

48” x 96” - Automatic Double Smoke Vent – Steel Curb & Aluminum
Smoke vents such as BA-DSH-A 48" x 96" Automatic Double Smoke Vent – Steel Curb & Aluminum by Best Access Doors provide the highest standard of protection, providing crucial ventilation and suppression in the event of a fire. BA-DSH-A optimized by Best Access Doors, features a highly innovative fusible link that automatically activates double-leaf doors for immediate ventilation.
Count on this model's compression springs to automatically open against wind or loads as high as 10 psf. BA-DSH-A protects your elevator shafts, schools, gymnasiums, and retail structures by providing a point of attack for firefighters while potentially reducing the impact of a blaze.
Why Choose BA-DSH-A?
Automatic Double-Leaf Ventilation: BA-DSH-A features a positive releasing latch, activated by a rigorously tested UL-listed fusible link, which melts at temperatures over 165°F. Once the fuse melts, you can count on BA-DSH-A's covers to release, expelling flames, fumes, and toxic gases.
Weatherproofed Construction: BA-DSH-A has EPDM rubber gaskets permanently adhered to its cover, providing a tight seal while leaving the elements out of your spaces. BA-DSH-A's built-in drainage channels leave it highly corrosion-resistant from elemental exposure.
Structural Reinforcement: BA-DSH-A provides live-load support of up to 40 pounds per square foot of load-bearing support to your rooftops.
UL 796 Compliant: BA-DSH-A fortifies your structures with tamper-resistant heavy-gauge steel and a Class A UL 796 rating, providing the highest level of fire resistance for rooftops.
Optimized Energy Efficiency: BA-DSH-A has 1" thick fiberboard insulation within its curb, reinforced by 1"thick fiberglass within its cover for enhanced thermal resistance and reduced energy consumption.
Easier Installations: With a 3-½" mounting flange, an overlapping cover design, and 7/8" predrilled holes, BA-DSH-A easily and securely fastens to roof decks with a straightforward, streamlined process.
Specifications:
- Dimensions: 48” x 96”
- Material: 14-gauge G-90 pain bond galvanized steel and 11-gauge aluminum
- Cover: Brake-formed hollow-metal design with 1" concealed fiberglass insulation, 3" beaded, overlapping flange, fully welded at the corners, internally reinforced for 40 psf live load
- Curb: 12" in height with integral cap-flashing, 1"fiberboard insulation, fully welded at corners, 3-½" mounting flange with 7/16" holes
- Gasket: Extruded EPDM rubber gasket permanently adhered to cover
- Hinges: Heavy-duty pintle hinges with 3/8"Type 316 hinge pins
- Latch: Positive hold/release mechanisms controlled by a single UL-listed 165°F fusible link; designed to hold cover closed against a 90 psf force
- Operation: Compression springs enclosed in telescopic tubes open covers to manually open vent covers automatically against a 10 psf snow/wind load when released
- Finish: Alkyd base red oxide primer
- Hardware: Aluminum – Engineered composite compression spring tubes with steel compression springs packed in grease; Type 316 Stainless steel hinges; all other hardware zinc-plated
Enhance your building's safety features by adding BA-DSH-A 48" x 96" Automatic Double Smoke Vent – Steel Curb & Aluminum by Best Access Doors today!
