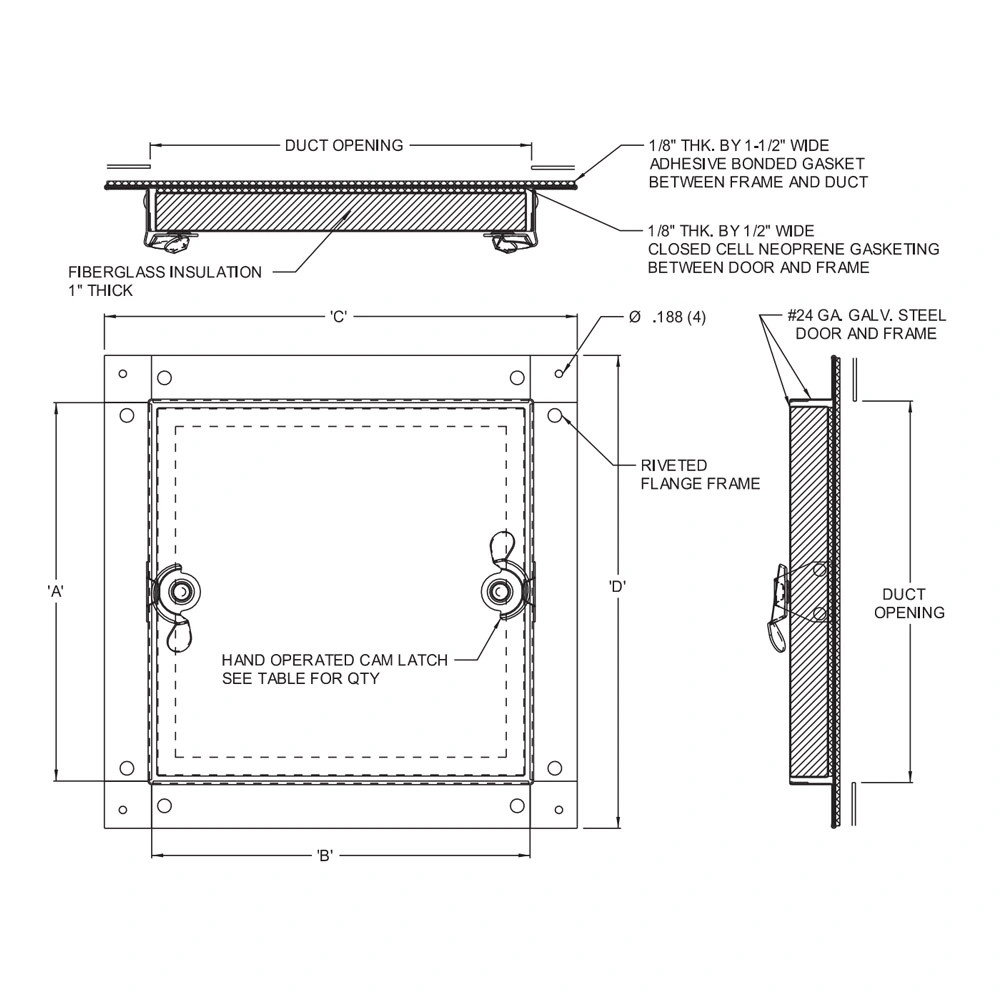

BA-CDSS-6030
|
|
6" x 6" Self Stick Duct Doors
The BA-CDSS-6030 Self Stick Duct Door provides easy access to sheet metal ducts by utilizing an innovative self stick frame for easy installation. The door panel is insulated, double cam, no hinge. The BA-CDSS-6030 is tested to 10" SP with minimal leakage.
Application
- Provides easy access to sheet metal ducts
Product Features
- Innovative self stick frame for easy installation
- Insulated door panel, double cam, no hinge
- Tested to 10" SP with minimal leakage
Options:
- ALUMINUM
- STAINLESS STEEL
- CYLINDER LOCK & KEY
- HASP + STAPLE
- L HANDLE
Features:
Door: 24 gauge galvanized steel, double panel
Frame: 24 gauge galvanized steel
Insulation: Door panel filled with 1" fiberglass insulation
Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8” thick by 1/2” wide adhesive bonded gasket between frame to duct
Latch: Self tightening, hand operated cam latches
Hardware: Hex head sheet metal screws
