60" x 60" Domed Double Smoke Vent - Steel Curb & Alum. Cover

BA-RVFV

60" x 60" - Domed Double Smoke Vent – Steel Curb & Alum. Cover

By including BA-RVFV 60" x 60" - Domed Double Smoke Vent – Steel Curb & Aluminum Cover by Best Access Doors, you will be taking a large step toward enhancing the safety profile of your buildings. This high-quality, rugged, yet aesthetic smoke vent provides superior smoke control and ventilation in the event of a blaze. BA-RVFV features a fusible link that will activate with exposure to flames or high temperatures rigorously tested, certified, and listed by industry leaders UL.

BA-RVFV maximizes your value with 1" thick, high-quality PIR insulation, which boasts an R-value of 6 for increased thermal resistance and reduced energy loss. And with domed acrylic skylights, BA-RVFV is the ideal solution for dark and dreary workplaces, allowing more natural sunlight for better well-being and reduced lighting costs.

Why is BA-RVFV the Perfect Choice?

Automatic Opening: BA-RVFV's innovative design includes a UL-listed fusible link that will activate at temperatures over 165 degrees, automatically engaging and opening in the event of a fire.

Illuminates Dark Workplaces: BA-RVFV features domed acrylic glass panels to invite more natural light into the workplace for better visibility and enhanced well-being.

Air and Weathertight: This model features bulb neoprene gaskets for an air and weathertight seal for enhanced protection against dust, debris, draft airflow, and heat loss when it matters most.

Maximized Venting Area: We have designed BA-RVFV with double-leaf doors to maximize its ventilative properties for better protection in the case of a fire.

Enhanced Energy Efficiency: BA-RVFV offers enhanced energy efficiency with 1" PIR insulation for better thermal resistance and an R-value of 6.

Extremely Durable Construction: BA-RVFV combines the best of both worlds, comprising aluminum's lightweight and anti-corrosive properties and the rugged resistance to wear and tear of steel.

With its highly aesthetic design and exceptional safety features, BA-RVFV offers you versatility in applications ranging from commercial buildings to recreational venues, educational and healthcare facilities, and much more!

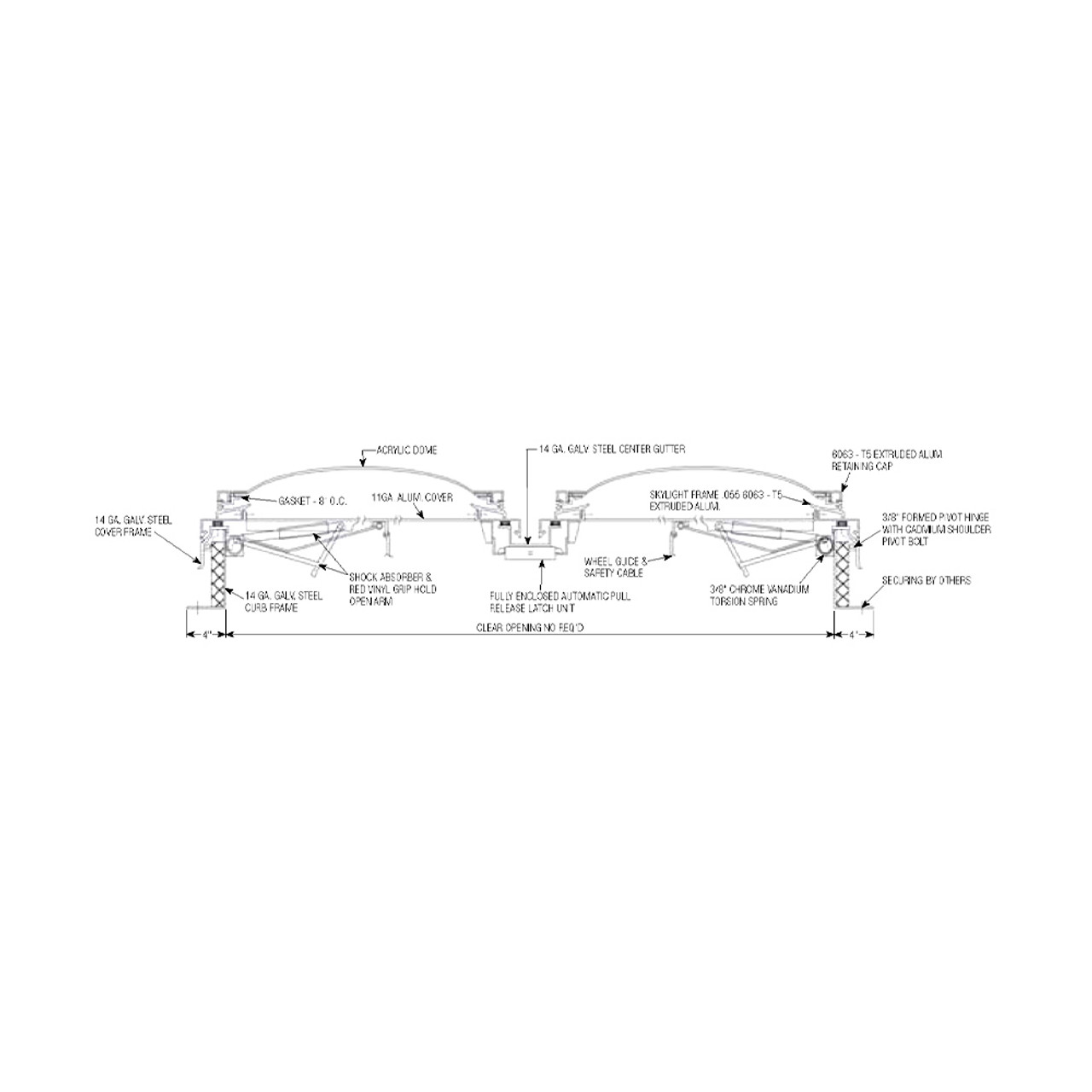

Specifications:

• Dimensions: 60" x 60”
• Cover: 14-gauge aluminum with 18-gauge steel inside liner with acrylic dome
• Insulation: 1" PIR (R-6) Insulation in curb and cover
• Gaskets: Bulb neoprene door gaskets
• Opening: Automatic torsion springs activated by 165-degree fusible link
  Note: Clear zinc-plated automatic locking hold open arms included
• Curb: 11-gauge aluminum single wall curb with diamond grip to secure roof membrane
• Hinge: Heavy-duty aluminum hinge with bolt pin
• Door Latch: Fully enclosed automatic pull release latch
• Material: 14-gauge galvannealed steel with extruded aluminum

Enjoy peace of mind, increased energy efficiency, and more sunlight by adding BA-RVFV 60" x 60" - Domed Double Smoke Vent – Steel Curb & Aluminum Cover by Best Access Doors.

Your Wish is Our Command!

At Best Access Doors, we pride ourselves on upholding the highest commitment to our customer's satisfaction. Our customer reviews tell the story!

Simply choose the size that suits your needs! If you have any questions or concerns, you can reach us at (800)-483-0823 to connect with our world-class product experts.
